Our Products

Silver Brazing Fluxes Oxiflux® series for Tungsten Carbides

Flux selection is determined by the base metal and the filler metal alloys working temperature. The working temperature and melting range of the filler alloy must match the flux's active range.

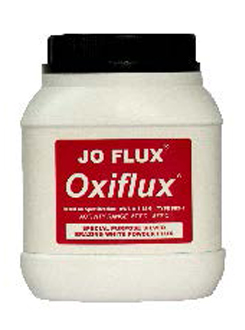

Oxiflux® Flux Powder
	Recommended for:	Description and Flux characteristics:	General information:
	Used for brazing of tungsten carbide, tungsten carbide backed PCD and certain grades of cast iron. Suitable for flame and induction heating brazing. Activity range: 570 - 870°C.	Oxiflux ® is a special purpose silver brazing white powder flux. Perfect wetting action. Wide active range. High activity medium to long life flux.	Based on specification: AWS A5.31M: TYPE FB3-F. For use with BAg (High to medium silver brazing alloys containing nickel and manganese) group alloys. Flux removal: Flux residues left by this flux are corrosive and must be removed from brazed joint area. After brazing clean flux residues by mechanical removal methods & soaking in hot sodium hydroxide solution and followed by brushing under hot water. Standard packing: 500gms, 4 kg.

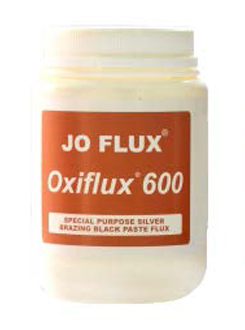

Oxiflux® 600 Flux Paste
	Recommended for:	Description and Flux characteristics:	General information:
	Used for brazing of cemented tungsten carbide, tungsten carbide backed PCD, stainless steel and hard metals. Suitable for flame and induction heating brazing. Activity range: 550 - 850°C.	Oxiflux® 600 is a special purpose silver brazing brown paste flux. Content elemental form boron metal powder. Effective on refractory oxides High activity Medium life flux.	Based on specification: EN 1045 FH12. * Used with BAg (High silver brazing alloys containing nickel and manganese) group alloys. Flux removal: Flux residues left by this flux are corrosive and must be removed from brazed joint area. After brazing clean flux residues by mechanical removal methods & soaking in hot sodium hydroxide solution and followed by brushing under hot water. Standard packing: 500gms.

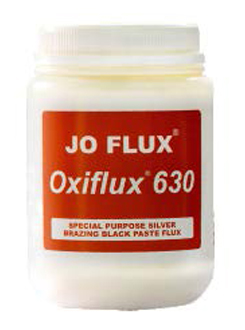

Oxiflux®630 Paste Flux
	Recommended for:	Description and Flux characteristics:	General information:
	Used for brazing of cemented tungsten carbide, tungsten carbide backed PCD, stainless steel, hard metals & certain grades of cast iron. Refractory metals. Good temperature – time stability. Suitable for rapid heating (induction brazing heating) methods. Activity range: 565 - 925°c.	Oxiflux®630 is a special purpose silver brazing brown paste flux. Content elemental form boron metal powder. Perfect wetting of brazing alloy. High activity long life flux.	Based on specification: AWS A 5.31M : TYPE FB3-C. *Used with BAg (High to medium silver brazing alloys containing nickel and manganese) group alloys. Flux removal: Flux residues left by this flux are corrosive and must be removed from brazed joint area. After brazing clean flux residues by mechanical removal methods & soaking in hot sodium hydroxide solution and followed by brushing under hot water. Standard packing: 500gms.

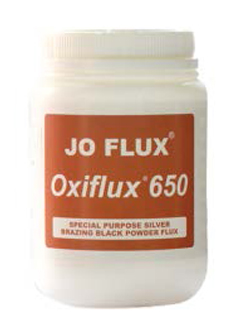

Oxiflux®650 Powder Flux
	Recommended for:	Description and Flux characteristics:	General information:
	Used for brazing of cemented tungsten carbide and tungsten carbide backed PCD. Suitable for flame and induction brazing heating. Activity range: 550 - 850°C.	Oxiflux®650 is special purpose silver brazing powder flux. Content elemental form boron metal powder. Most suitable where low to medium temperature is required for cutting tool manufacturing. Medium life flux.	Based on specification: EN1045 FH12. * Used with Bag (Low temperature high silver brazing alloys containing nickel) group alloys. Flux removal: Flux residues left by this flux are corrosive and must be removed from brazed joint area. After brazing clean flux residues from brazed joint by soaking and then brushing under hot water. Standard packing: 500gms.
